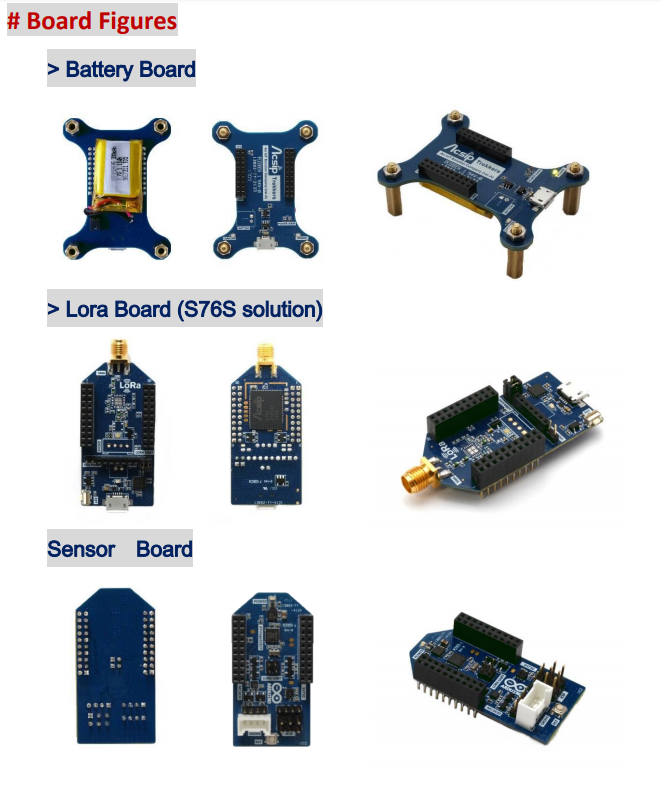

Arduino Setup for Lora's Sensor Board

Because Lora's Sensor Board don't have Programmer ,we need another Arduino Board(ex:UNO) to help program Lora's Sensor Board.The method is Arduino ISP.

==>Arduino ISP Wiring

UNO D13 ←→ ICSP SCK (pin 3)

UNO D12 ←→ ICSP MISO (pin 1)

UNO D11 ←→ ICSP MOSI (pin 4)

UNO D10 ←→ ICSP REST (pin 5)

UNO 5V ←→ ICSP +5V (pin 2)

UNO GND ←→ ICSP GND (pin 6)

=> Arduino ISP Upload:

=> Config \arduino-1.8.1\hardware\arduino\avr\boards.txt

############################################################## uno.name=Arduino/Acsip UNO uno.vid.0=0x2341 uno.pid.0=0x0043 uno.vid.1=0x2341 uno.pid.1=0x0001 uno.vid.2=0x2A03 uno.pid.2=0x0043 uno.vid.3=0x2341 uno.pid.3=0x0243 uno.upload.tool=avrdude uno.upload.protocol=arduino uno.upload.maximum_size=32256 uno.upload.maximum_data_size=2048 uno.upload.speed=115200 uno.bootloader.tool=avrdude uno.bootloader.low_fuses=0xFF uno.bootloader.high_fuses=0xDE uno.bootloader.extended_fuses=0x05 uno.bootloader.unlock_bits=0x3F uno.bootloader.lock_bits=0x0F uno.bootloader.file=optiboot/optiboot_atmega328.hex uno.build.mcu=atmega328 uno.build.f_cpu=16000000L uno.build.board=AVR_UNO uno.build.core=arduino uno.build.variant=standard

Finish~~
